RAD Industry
A California Corporation,
is a leading manufacturer in
customized rotary carbide
cutting tools

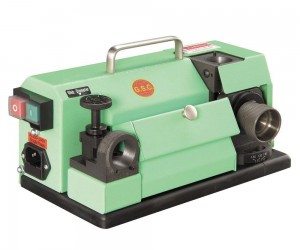

1. Convenient Design: X, Y-axis workable2. Cutting Capacity:    Cutting diameter: 1/8" - 5/8" (3-16m)     Cutting length of work-piece end:  9/16" (15mm)/max.3. Patent Radius cutting by Dual-motor driver4. Quick-Work-Changing System:  3-Jaw chuck system.5. Cooling System: Dry cooling6. Cutting Disc: SD#100 for carbide, CBN100 for HSS7. Optional Grinding Wheel: For Neck grinding SD#100 width 5mm, 10mm for carbide, CBN#100 width 5mm, 10mm for HHS.WeightN.W. 27.5Kg  /  G.W. 29.5Kg /N.W. 60.62 lb / G.W. 65.04 lbMachine Size405mm x 245mm x 225mm / 15-15/16" x 9-5/8" x 8-7/8"Packing Size470mm x 320mm x 320mm / 18-1/2" x  12-5/8" x 12-5/8"Standard AccessoriesSD#100 (Φ100mm) (3-15/16") -For Carbide x 1CBN#100 (Φ100mm) (3-15/16") -For HSS x 1E60WA (..

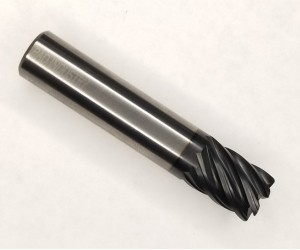

7 Flutes High Performance End MillsCutting Diameter              1/2"Shank Diameter                1/2"Length of Cut (LOC)           5/8"Overall Length (OAL)        2-1/2" Coating                              AlTiN Corner Radius                   .01538 degree HelixMicrograin Solid CarbideProduct Features:38 Degree Helix maximizes tool core rigidity and also improves chip removal rateVariable Index Geometry designed to minimize chatter resulting in an exceptional finishEccentric OD Relief (positive arched cutting edge) for increased strength of the cutti..
4 Flutes High Performance End MillsCutting Diameter              1/2"Shank Diameter                1/2"Length of Cut (LOC)           1-5/8"Overall Length (OAL)        3.5" Coating                              ALTIN Micrograin Solid CarbideProduct Features:Manufactured in the U.S.A. using premium 10% cobalt micrograin carbide..
Designed to the MIL-STD-1913 specificationsMill the entire Picatinny Rail in a single pass without tool changesType II: .005" radius tangent to angle and L4Cutting on entirety of concave form and OD flat at end4 helical flutes for better cutting action.005" max radius for all internal cornersSolid carbideCNC grounded in USA D1  CUTTER DIA     0.5"   (tol. +.000" / -.002")L2  LENGTH OF CUT .377"  (tol +.001" / -.001") D3  MINOR DIA.    .282   (tol +.001" / -.001")L6   0.021"L4  0.137"Type IID2  SHANK DIA  0.5"L1   OAL   2.5"..
4 Flutes Serration Tool Cutting Diameter              3/8"Shank Diameter                3/8"Length of Cut (LOC)           1"Overall Length (OAL)        3" Product Features:45 Degree Helix maximizes tool core rigidity and also improves chip removal rateVariable Index Geometry designed to minimize chatter resulting in an exceptional finishEccentric OD Relief (positive arched cutting edge) for increased strength of the cutting edgesManufactured in the U.S.A. using premium 10% cobalt micrograin carbide..
4 Flutes High Performance End MillsCutting Diameter              1/2"Shank Diameter                1/2"Length of Cut (LOC)           1-1/4"Overall Length (OAL)        3" Coating                              ALTIN Micrograin Solid CarbideProduct Features:Manufactured in the U.S.A. using premium 10% cobalt micrograin carbide..
3 Flutes High Performance End MillsCutting Diameter              1/2"Shank Diameter                1/2"Length of Cut (LOC)           1-1/4"Overall Length (OAL)        3" Coating                              ZrNCorner Radius                  .030 Radius45 degree HelixMicrograin Solid CarbideProduct Features:45 Degree Helix maximizes tool core rigidity and also improves chip removal rateVariable Index Geometry designed to minimize chatter resulting in an exceptional finishEccentric OD Relief (positive arched cutting edge) for increased strength of the cutting edgesManufactured in the U.S.A. using premium ..

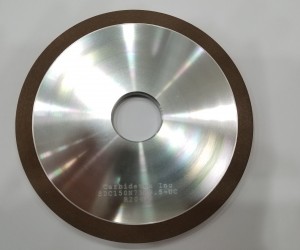

Item 1A1R Cut Off Grinding WheelAbrasive Wheel Type Type 1   Abrasive Wheel Diameter (D) 6"Arbor Hole Size (H) 1-1/4"Thickness (T) 0.035"Abrasive Material DiamondAbrasive Grit 120Max. RPM 6050Bond Type ResinAbrasive Depth (X) 0.28"..

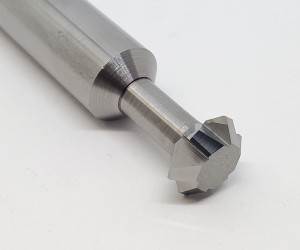

Mill the inverse form for the Picatinny Rail used for attachmentsCutting on entirety of angle and flatShort reaches for maximum strength6 flutesSolid carbideCNC ground in the USAAlTiN CoatingD1  CUTTER DIA              0.5"   (tol. +.000" / -.002")F     TIP FLAT                        0.021"L2  LENGTH OF CUT          .0.2075"  (tol +.001" / -.001")Neck DIA.                               1/4" (0.25")D2 SHANK DIA                  1/4" (0.25")L1 OAL                                3-1/4" (3.25")..
Solid Carbide Phillips 5 Cutting ToolThis 8 flutes solid carbide phillips 5 cutting tool are developed from 5/8" dia. solid carbide.  Shank are grinded down to .375" diameter with .1730" length of cut with 92 and 162 included angle built around this cutting tools...

Who We Are

RAD Industry Made in USA.
We make customized tools
Customer satisfaction is key…
“We do not accept ‘Close’ only Perfect”
